Description

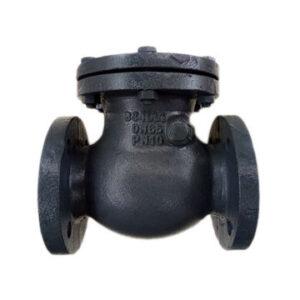

Super Duplex Swing Check Valve
Body: Super Duplex Stainless Steel 4A, 5A, 6A, Duplex Stainless Steel, Alloy 20, CN7M, Hastelloy, Carbon Steel,
WC6, WC9, C5, C12, LCB, CF3M
Disc: Super Duplex Stainless Steel, Duplex Stainless Steel, Alloy 20, CN7M, Hastelloy, Carbon Steel, WC6,
WC9, Â C5, C12, LCB, CF3M, Super Duplex Stainless Steel 4A, 5A, 6A
Trim: SS304, SS316, SS304L, SS316L, 13%Cr.Steel, Stellite, Hastelloy, Alloy 20, Duplex Stainless Steel, Super
Duplex Stainless Steel
Gland Packing: Graphite, PTFE
End Connections: Flanged, Socketweld, Buttweld
Actuation: Handwheel Operated, Electric Actuated, Pneumatic Actuated
Nominal Size: DN40 to DN400
Nominal Pressure: PN 1.0 to 25 Mpa, Class 150 to 2500
Dimensions                              Unit: mm
PN16
| DN | L | H |
| 40 | 180 | 129 |
| 50 | 200 | 147 |
| 65 | 240 | 161 |
| 80 | 260 | 178 |
| 100 | 300 | 190 |
| 125 | 350 | 265 |
| 150 | 400 | 285 |
| 200 | 500 | 345 |
| 250 | 600 | 394 |
| 300 | 700 | 420 |
| 350 | 800 | 455 |
| 400 | 900 | 520 |
