Description

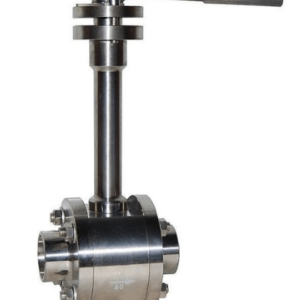

Forged Cryogenic Trunnion Ball Valve
Body: CF8, CF8M, SS304, SS316
Bonnet: Stainless Steel
Stem: Stainless Steel
Seal Ring: PTFE
Nominal Diameter: DN15 to DN65
Nominal Pressure: PN16 to PN64
Temperature: -196℃ to +80℃
Dimension
PN16 Unit: mm
| DN | D0 | D1 | L | B | H | E |
| 15 | 15 | 19 | 82 | 10 | 193 | 180 |
| 25 | 25 | 33 | 82 | 12 | 218 | 200 |
| 40 | 40 | 46 | 113 | 15 | 246 | 200 |
| 50 | 50 | 58 | 157 | 15 | 336 | 360 |
| 65 | 65 | 77 | 177 | 15 | 450 | 360 |
