Description

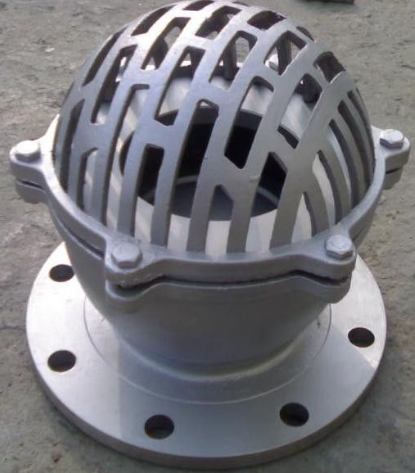

Foot Valve
Body: Cast Iron, Ductile Iron, SS304, SS316
Disc: Carbon Steel, Stainless Steel, SS304, SS316
Seat: F304, F316
Mesh: SS304
Nominal Size:Â DN50 to DN300
Nominal Pressure: PN16, Class150
Dimensions                                                        Unit: mm
| DN | D | D1 | D2 | b-f | z-*d | hO | H |
| 50 | 140 | 110 | 90 | 16-3 | 4-14 | 17 | 142 |
| 65 | 160 | 130 | 110 | 16-3 | 4-14 | 25 | 180 |
| 80 | 185 | 150 | 125 | 18-3 | 4-18 | 32 | 197 |
| 100 | 205 | 170 | 145 | 18-3 | 4-18 | 40 | 230 |
| 125 | 235 | 250 | 175 | 20-3 | 8-18 | 43 | 270 |
| 150 | 260 | 225 | 200 | 20-3 | 8-18 | 38 | 297 |
| 200 | 315 | 280 | 255 | 22-3 | 8-18 | 65 | 382 |
| 250 | 370 | 335 | 310 | 24-3 | 12-18 | 84 | 460 |
| 300 | 435 | 395 | 262 | 24-4 | 12-23 | 90 | 530 |
