Description

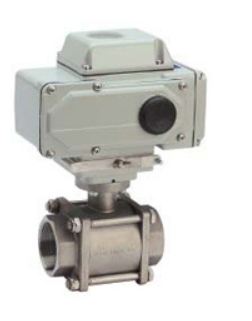

Electric Actuated Three Piece Ball Valve
Body: Carbon Steel, CF8M
Ball: Stainless Steel
Seat: PTFE, RTFE, PPL
Nominal Diameter: DN15 to DN80
Nominal Pressure: 1000PSI
End Connections: Screwed, Threaded Or Welded, Buttweld
Input and Output Signal: DC 4-30mA, DC 0-10V, DC 1-5V
Voltage: AC110-240V 380V 50/60Hz, DC 12V, DC 24V
Power Supply: 24V AC, 24V DC, 110V AC, 230V AC
Actuation Type: Electric Actuated
Dimensions                                        Unit: mm
| DN | G | L | H |
| 15 | 15 | 72 | 130 |
| 20 | 20 | 82 | 130 |
| 25 | 25 | 90 | 165 |
| 32 | 32 | 112 | 165 |
| 40 | 38 | 120 | 190 |
| 50 | 50 | 145 | 190 |
| 65 | 65 | 185 | 250 |
| 80 | 80 | 210 | 250 |
