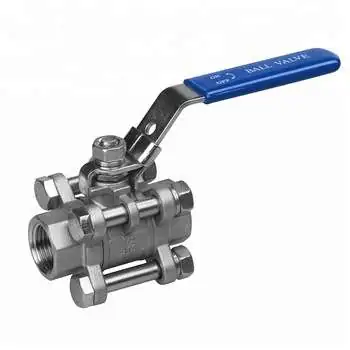

3 Piece Screwed Ball Valve

Availability In Stock

Custom Enquiry

Description

3 Piece Screwed Ball Valve

1. Body: Carbon Steel, Cast Iron, CF8, CF8M

2. Cap: Carbon Steel, Cast Iron, CF8, CF8M

3. Ball: Carbon Steel, Cast Iron, CF8, CF8M

4. Stem: SS304, SS316

5. Gland Nut: SS304

6. Seat: PTFE, RTFE

7. Seal: PTFE

8. Packing: PTFE

9. Thrust Washer: PTFE

10. Spring Washer: SS304

11. Stem Nut: SS304

12. Bolt: SS304

13. Nut: SS304

14. Spring Washer: SS304

15. Handle: Stainless Steel

16. Locking Device: Stainless Steel

17. Handle Sleeve: PVC

Full Port or Reduced Port

Investment cast stainless steel unibody

Blow-out proof stem, Double reduced port

Size: 1/4″ to 4″

Nominal Pressure: PN1.0 to PN2.5

Dimensions:                                                                                                   Unit: mm

SIZE D C L H W
1/4″ 11.6 14 65 50 120
3/8″ 12.7 17.5 65 50 120
1/2″ 15 22.7 65 60 120
3/4″ 20 27.5 75 64 130
1″ 25 34 85 71 154
1-1/4″ 32 42 100 79 154
1-1/2″ 38 49 125 86 185
2″ 50.8 60.5 150 95 185
2-1/2″ 65 76.5 190 130 250
3″ 80 90 210 142 250
4″ 100 108 268 170 280
